Diode Dynamics

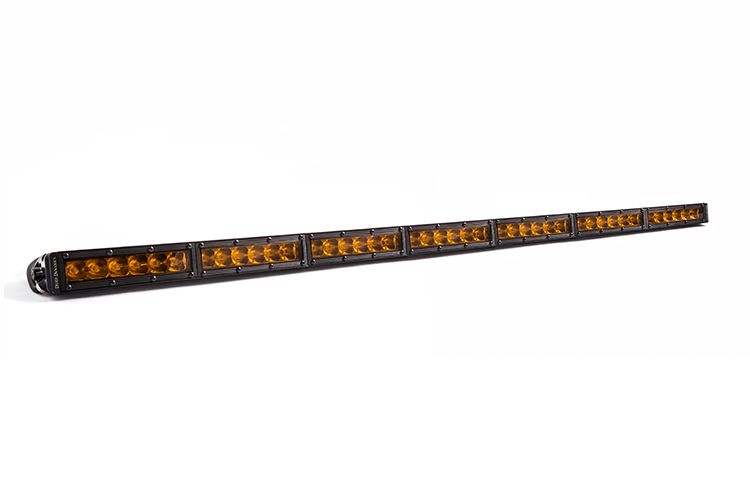

Diode Dynamics Universal LED Light Bar (18", 30",42",50") (SS18/SS30/SS42/SS50)

Regular price $280.00 USD
Regular price Sale price $280.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Beam Pattern
Size

DONT FORGET THE HARNESS

https://square1offroad.com/products/diode-dynamics-dual-output-offroad-wiring-harness-ss3?_pos=7&_sid=b5750e840&_ss=r

Features

  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs with pure white color
  • Available in Driving, Flood, or Combo beam patterns
  • Slim 42mm housing for low-profile fitment
  • Durable matte powdercoated extrusion

What's Included

In the Box:
  • One LED light bar
  • One wire pigtail
  • Universal Brackets�
Hardware:
  • Two (2) M6 Hex Screws, for main mounting point
  • Two (2) M5 Hex Screws, for rear mounting point
Warranty:8 year warranty

Functional Patterns.�All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!�

TheDrivingpattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular�20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

TheFloodpattern was designed to provide uniform, even illumination and a full�80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.

TheCombo�pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular�20Wx8H degree pattern while also illuminating area around it in a full�80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.�

�Universal fitment for vehicles such as silverado, sierra, titan, frontier, ram, tundra, tacoma, 4runner, f150, f250, f350, ranger, raptor, bronco, tahoe, wrangler, gladiator, etc!

1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
