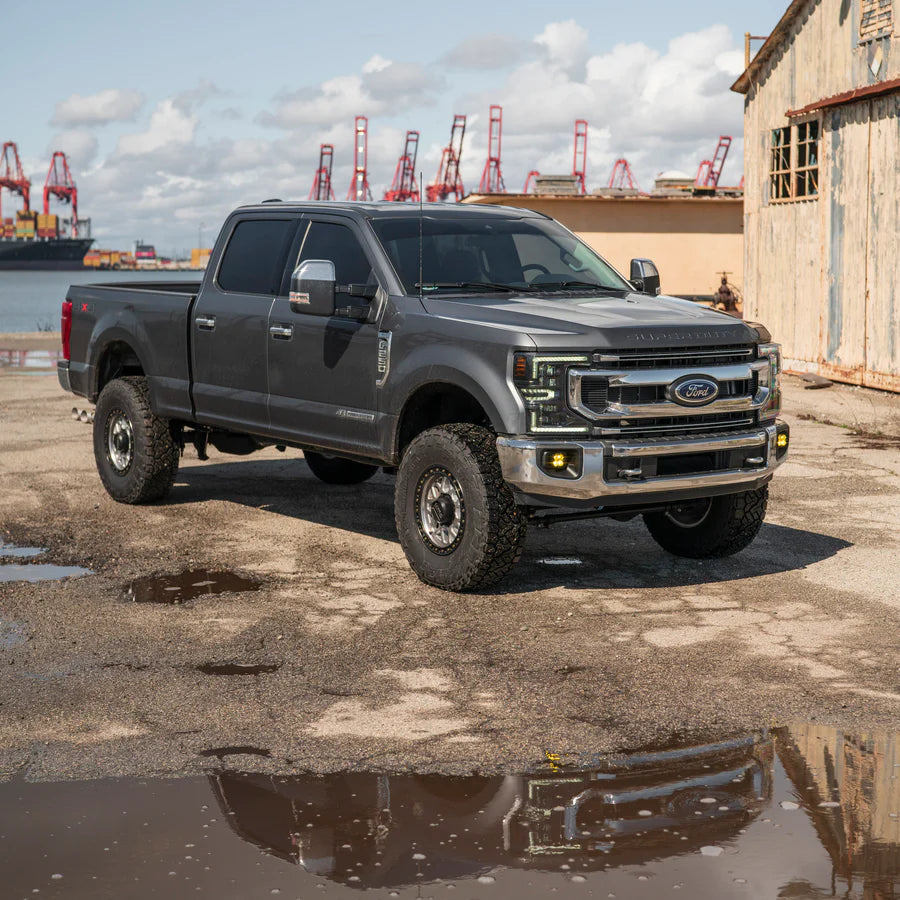

2017-2024 FORD F250/F350 SUPER DUTY BACKCOUNTRY 2.0 2.5"/3.5" Lift Carli LEVELING KIT

2.5" Lift for 2017, 2018, 2019 F250/F350

3.5" Lift for 2020, 2021, 2022, 2023, 2024 F250/F350

1.5" for Tremors

Want to customize your kit with more add-ons? After you add�this kit to your cart, check out the link below�

https://square1offroad.com/search?q=f250+carli&options%5Bprefix%5D=last

The Back�Country system offers a comfortable on road ride, but packs more damping and big hit absorption�capacity than the Commuter system. If your truck is doing dual duty on the street and dirt, but the King Pintop system is out of the price range, this is your system. In fact, it's probably the best bang for the buck suspension performance gain you�can bolt onto a 2017+ Super Duty truck.�

At the heart of this system is completely�custom Carli spec 2.0�reservoir shocks.� Unlike other brands that use off the shelf shocks, Carli went to the drawing board to design a completely custom and tuned shock for the 2017+ Super Duty platform, with unique valving for both gas and diesel trucks. These Remote Reservoir Shocks provide users with a comfortable, greatly improved on-road ride and�ample�off-road capability. PLEASE NOTE GAS SYSTEMS SHIP WITH CARLI CUSTOM SPEC FOX 2.0 SHOCKS.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1" and the rear 1"-1.5" depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5" Lift Systems from the previous generation, 2017-19, are now 3.5" for the 2020.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package.�If you find your truck is rear low,�we recommend this block kit.

This system fits�Ford F-250 and Ford F-350�4x4 trucks from�2017 to Current

SPECIFICATIONS

-2.5" Front Lift
-Custom coil spring rate
-Maintains steering geometry

COMPONENTS

-Carli Front Ford Super Duty 2.5" Leveling Coils
-Carli�Signature Series Custom Tuned Shocks
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops

OPTIONAL

-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli Ford Super Duty Fabricated Radius Arms
-Carli 2017+ Front Sway Bar Drop Brackets

�

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned and completely custom spec shocks. Each shock package goes through months of testing, development, tuning, and valving. The Back Country system offers great on road ride, with increased off road capability for higher speed driving.

�

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole.

�

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck�s ride. To keep the factory ride, select the end link option.

�

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37�s on a wider range of wheels.
