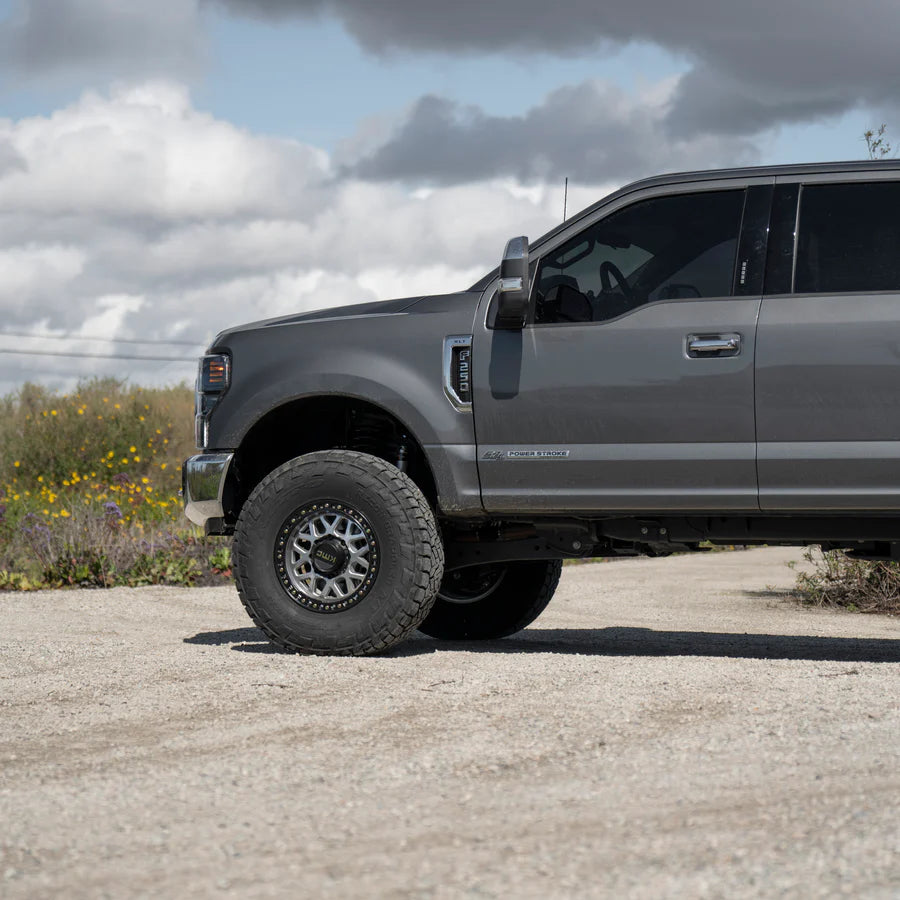

2017-2025 FORD F250/F350 SUPER DUTY COMMUTER 2.0 2.5"/3.5" Lift Carli LEVELING KIT

2.5" Lift for 2017, 2018, 2019 F250/F350

3.5" Lift for 2020, 2021, 2022, 2023, 2024, 2025 F250/F350

1.5" for Tremors

Want to customize your kit with more add-ons? After you add�this kit to your cart, check out the link below�

https://square1offroad.com/search?q=f250+carli&options%5Bprefix%5D=last

�

The Carli Commuter system is designed for 2017+ Ford Super Duty trucks wanting improved ride for daily driving and standard truck usage. While this system levels the truck, the rear goal is dramatically improved ride quality, which is accomplished through completely custom Carli spec 2"�diameter shocks, coils tuned specifically for gas and diesel applications, and the highest quality USA made supporting parts. With almost double the factory wheel travel and a huge change in ride, this Carli�Commuter level height system is in a league of its own. Pease note that gas systems are currently still using Carli's custom spec Fox 2.0 shocks with Carli's proprietary lengths, valving and design. These are not your average off the shelf Fox shocks and are specifically set up for gas Super Duty trucks.�

The Commuter is the Leveling System with the Adjustable Track Bar Included and an option for the rear Progressive Add-A-Pack.� This system was designed and built for the truck that keeps it on the pavement. A �Base Kit� SKU must be accompanied by the SKU of a Sway Bar Option and Progressive Add-a-Pack option to form a complete system.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1" and the rear 1"-1.5" depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5" Lift Systems from the previous generation, 2017-19, are now 3.5" for the 2020.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package.�If you find your truck is rear low,�we recommend this block kit.

This system fits�Ford F-250 and Ford F-350�4x4 trucks from�2017 to Current

SPECIFICATIONS

-2.5" Front Lift
-Custom coil spring rate
-Maintains steering geometry

COMPONENTS

-Carli Front Ford Super Duty 2.5" Leveling Coils
-Carli�Signature Series Custom Tuned Shocks
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops

-Carli 2017+ Ford Super Duty Adjustable Track Bar

OPTIONAL

-Carli Ford Super Duty Fabricated Radius Arms
-Carli 2017+ Front Sway Bar Drop Brackets

�

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. It's one of the only leveling kits at this price that comes with custom tuned shocks, and the difference in ride is impressive.

�

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole.

�

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck�s ride. To keep the factory ride, select the end link option.

�

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37�s on a wider range of wheels.
