2017-2024 FORD F250/F350 SUPER DUTY SIGNATURE SERIES 2.5"/3.5" Carli LEVELING KIT

2.5" Lift for 2017, 2018, 2019 F250/F350

3.5" Lift for 2020, 2021, 2022, 2023, 2024 F250/F350

1.5" for Tremors

Want to customize your kit with more add-ons? After you add�this kit to your cart, check out the link below�

https://square1offroad.com/search?q=f250+carli&options%5Bprefix%5D=last

�

Carli's 2017+ Ford Super Duty Leveling Kit begins with Carli's custom tuned and designed 2.5" leveling coil springs. Carli then goes the extra mile with custom tuned Carli private label shocks front and rear (rear if the rear shock option is selected), custom extended front brake lines, caster correction shims, high clearance front bump drop drops, and sway bar drop brackets. With each component specifically engineered to provide the very best suspension geometry and alignment, there is no better leveling kit for your 2017+ Ford F250/F350!

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package.�If you find your truck is rear low,�we recommend this block kit.

This system fits�Ford F-250 and Ford F-350�4x4 trucks from�2017 to Current

SPECIFICATIONS

-2.5" Front Lift
-Custom coil spring rate
-Maintains steering geometry

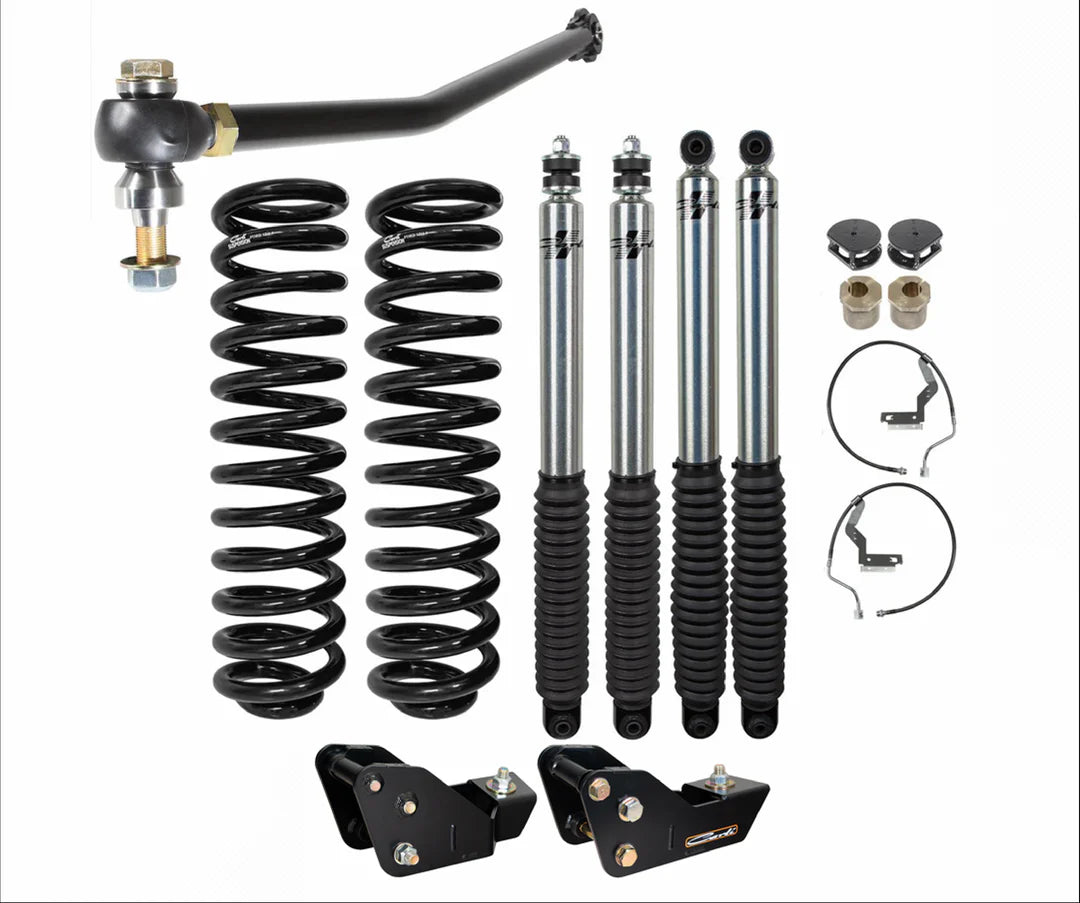

COMPONENTS

-Carli Front Ford Super Duty 2.5" Leveling Coils
-Carli�Signature Series Custom Tuned Shocks
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops

OPTIONAL

-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli Ford Super Duty Fabricated Radius Arms
-Carli 2017+ Front Sway Bar Drop Brackets

�

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. It's one of the only leveling kits at this price that comes with custom tuned shocks, and the difference in ride is impressive.

�

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole.

�

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck�s ride. To keep the factory ride, select the end link option.

�

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37�s on a wider range of wheels.
