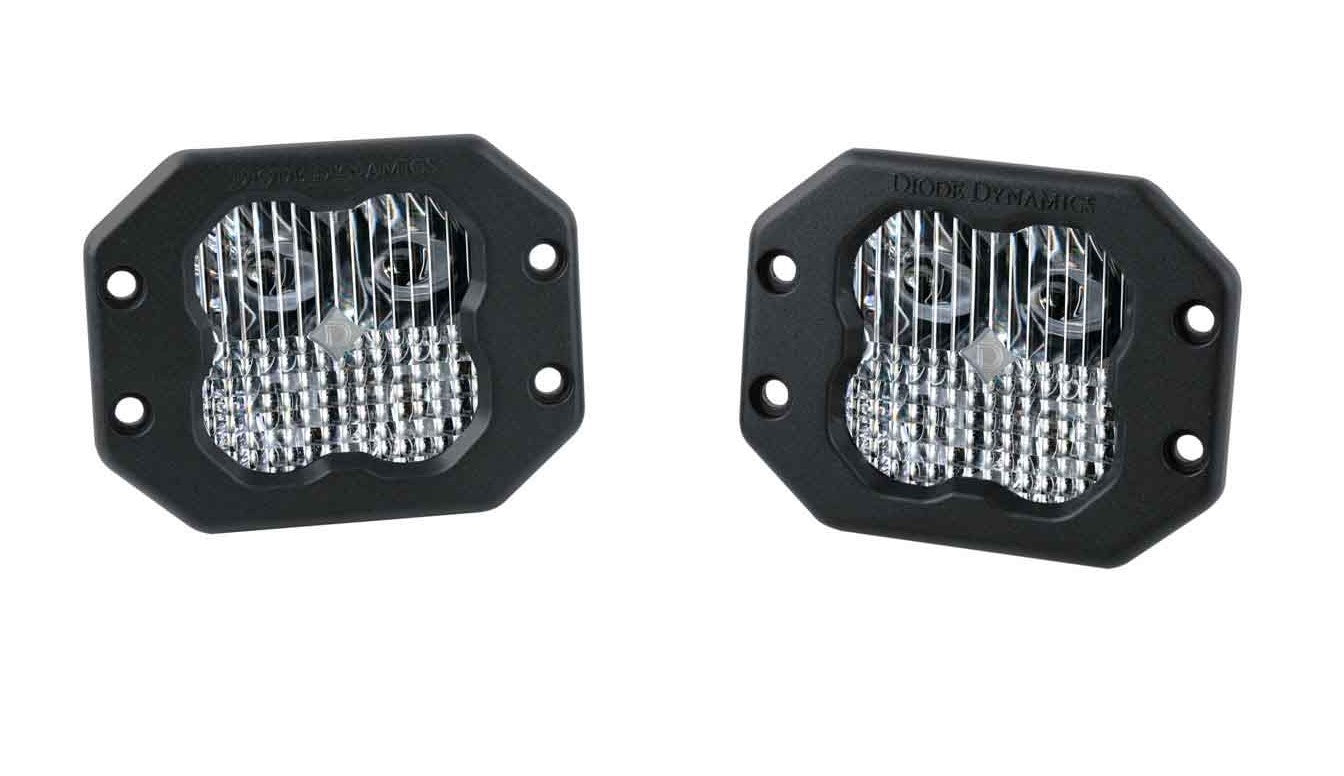

Diode Dynamics SS3 Offroad LED Pods: Flush Mount (Universal)

Don't forget the wiring harness!

https://square1offroad.com/products/diode-dynamics-dual-output-offroad-wiring-harness-ss3?_pos=19&_sid=ee03db847&_ss=r

Features: Allows for flush installation on bumpers and truck beds. Advanced TIR optics provide high efficiency and focus. Available in SAE Driving, SAE Fog, Flood, or Spot beam patterns. Pin-fin heatsink design, for superior thermal dissipation. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Assembled in USA.

Overview: Add LED pods to your bumper, truck bed, or anywhere else you can think of with our SS3 Flush Mount Pod Kit! Featuring higher output intensity than any other 3inlight on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included flush mount bezel, the SS3 Flush Mount Kit is extremely versatile and once installed has a clean, factory-style appearance.

Focused: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

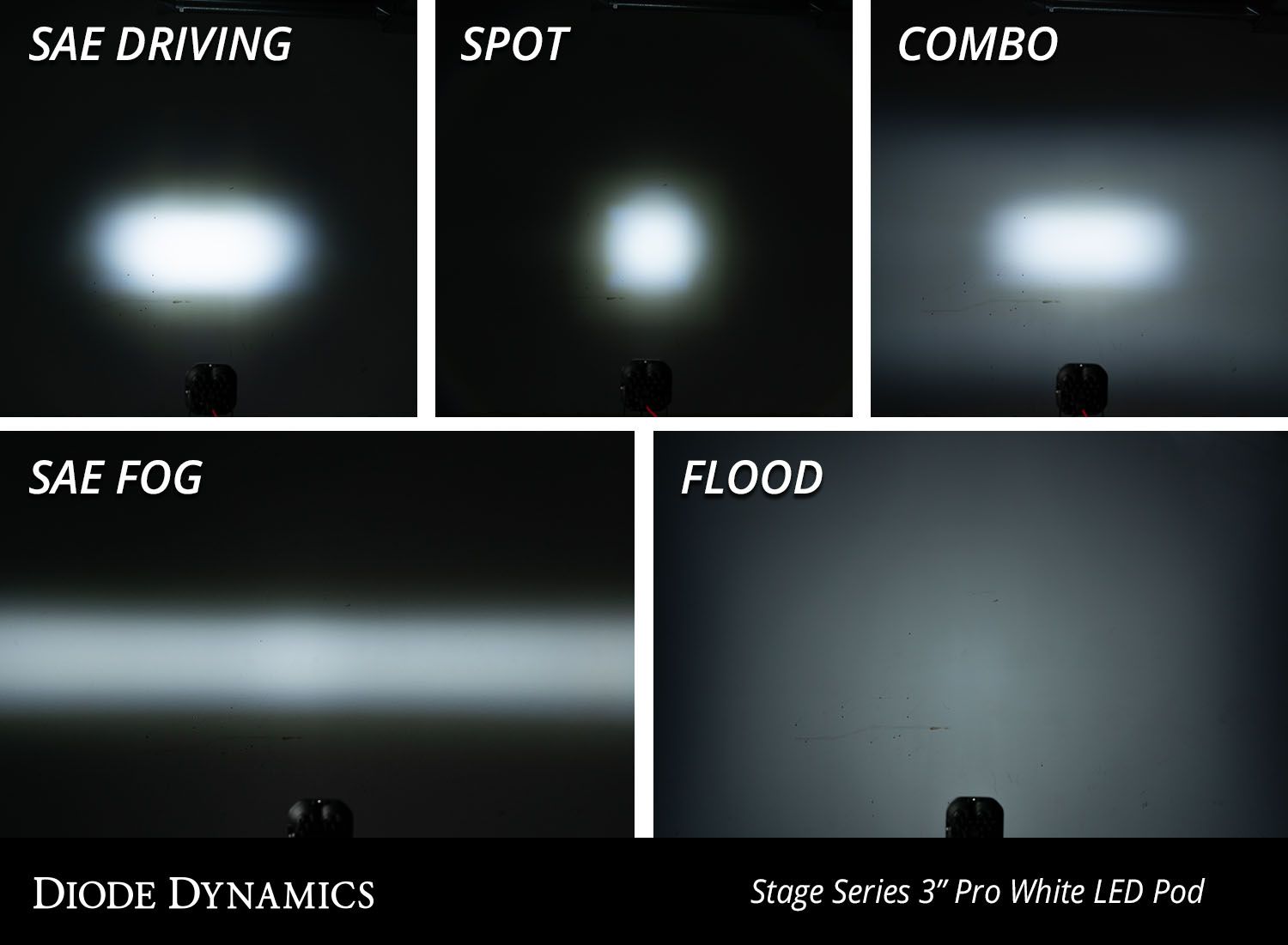

Functional Patterns: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

SAE Driving: is designed to supplement your high beams, but it's great for general illumination as well. Rather than a traditional spot pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog: provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.


White or Yellow: All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The SS3 Stage Series 3" Yellow LED Pod can be found here. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport or Pro: Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information or click here.

Simple connections: All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output Harness can be used to power up to two SS3 pods. If you are looking to power more than two SS3 pods, we recommend using our Heavy Duty Dual Output Harness along with a Deutsch DT Splitter.

Proven Reliability: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Made in the USA: If you're a lighting enthusiast who only buys American; Diode Dynamics is a clear winner in that category. One of very few brands in the automotive lighting industry who designs, engineers, and proudly produces their products right here in St. Louis, MO. We've sold their products for many years and are confident you won't be let down in the performance or quality departments. There's no better place to buy Diode Dynamics lighting upgrades for your vehicle.

�

Universal fitment for vehicles such as silverado, sierra, titan, frontier, ram, tundra, tacoma, 4runner, f150, f250, f350, ranger, raptor, bronco, tahoe, wrangler, gladiator, etc!
