Carli Suspension

CARLI 2017-2024 FORD F250/F350 SUPER DUTY SWAY BAR END LINK KIT

Regular price $450.00 USD
Regular price Sale price $450.00 USD
Sale Sold out
Shipping calculated at checkout.
Truck Year
Lift Height

Fits 2017, 2018, 2019, 2020, 2021, 2022, 2023 F250/F350 4x4

2.5" Kit

2017-19: The 2.5" Carli System will use either the CS-FSBD-LVL-17 (Drop brackets) OR the CS-FEL-LVL-17 (Stainless Sway Bar End Links). The drop brackets will be more cost-effective and maintain the factory sway bar links. The Carli Stainless Sway bar links are a far more robust, fully serviceable and rebuildable option that won�t interfere with plow brackets.

2020+: The 3.5" Carli System will use either the CS-FSBD-LVL-20 (Drop brackets) OR the CS-FELKIT-LVL-20 (Stainless Sway Bar End Links + Short Drop-Forward Block). The drop brackets will be more cost-effective and maintain the factory sway bar links. The Carli Stainless Sway bar links are a far more robust, fully serviceable and rebuildable. The included drop brackets perfectly position the Carli Sway bar links to cycle the extended travel range. We do not currently have an option that�s snow-plow compatible for the 2020+.


� Extended Length to accommodate Leveled Trucks
� 17-4 Stainless Steel, Greasable and Fully Rebuildable
� Excellent Articulation
� Only Works on Carli Leveling Lifts
� Fitment: 2017-23 F250/F350 4�4


� Combines End Links and Drop Brackets For Perfect Sway Bar Position
� Extended Length to accommodate Leveled Trucks
� 17-4 Stainless Steel, Greaseable and Fully Rebuildable
� Excellent Articulation
� Compatible with 2.5" & 3.5" Suspension Systems
� Fitment: 2020-23 F250/F350 4�4

4.5" Kit

Carli's Ford Super Duty sway bar end links are a direct bolt on solution for any truck with a 4.5" -5" suspension system. Carli builds these end links using 3/4" .120 wall material with 2" spherical joints on each end. Each joint consists of heat treated ball centers and washers for maximum service life. Unhindered articulation is obtained using spherical joints on each end. Our end links are 100% rebuildable.

SPECIFICATIONS

-Designed for trucks with 4.5" of lift

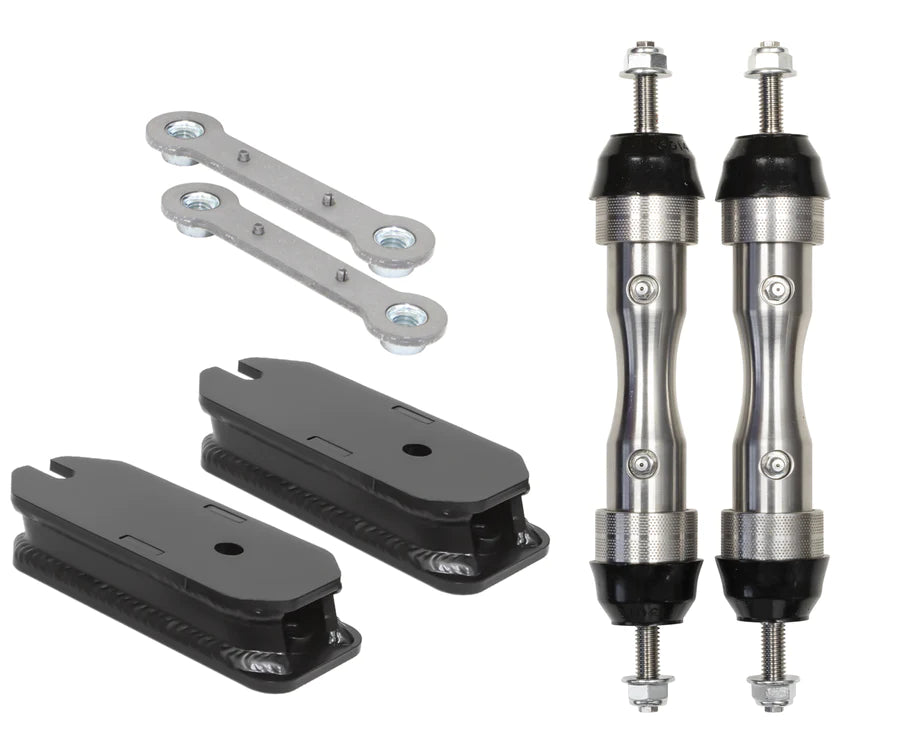

INCLUDES

-Pair of Carli stainless sway bar end links
-Pair of sway bar drop brackets for both sides of factory front sway bar
-Includes necessary hardware
