CARLI 2017-2025 FORD F450 SUPER DUTY E-VENTURE ELECTRONIC (2.5" LIFT) SUSPENSION SYSTEM

Fits 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Want to customize your kit with more add-ons? After you add this kit to your cart, check out the link below

https://square1offroad.com/search?q=f250+carli&options%5Bprefix%5D=last

The future of the HD truck suspension world is here. Carli suspension has spent months developing this dynamic valving shock package that responsively and constantly adapts to the terrain for the smoothest ride possible. An on board computer and advanced algorithm constantly adjusts the shocks hundreds of times per second. Carli pre-programed three presets for highway, rock crawling, and high speed off road driving.

The system uses a sensor mounted on top of the engine to determine vehicle pitch/roll as well as sensors tied into the OBD2 to read the truck's speed, brake pedal position, accelerator pedal position, and steering wheel rotation. That info then gets interpreted by an algorithm to allow individual adjustment of each shock.

Damping is variable in any setting, meaning the truck can be supple on small chatter, then detect a large impact, rise or dip, and ramp up instantly. That variable damping dramatically reduces�body roll in corners in any setting as well and allows for insane small bump sensitivity without giving up big hit composure. This system will be available for both 2.5 and 4.5 heights.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. We recommend�this block for trucks with a two piece driveshaft�and�this block for trucks with a one piece driveshaft.

This system fits�Ford F-250 and Ford F-350�4x4 trucks from�2017, 2018, 2019, 2020, 2021, 2022, 2023 and Current�

SPECIFICATIONS

-2.5" Front Lift 2017, 2018, 2019

-3.5" lift on 2020, 2021, 2022, 2023 trucks

-Dramatically improved on and off road performance

-Custom coil spring rate

-Maintains steering geometry

�BASE KIT INCLUDES:
CS-FLC-05 Front Leveling Coils
CS-FEV25SPKG-LVL-05 Carli/SDI Custom Tuned 2.5" Shocks, Harnesses, ECU, Touch Screen, & IMU
CS-FORDBBL-LVL-17-F Front Brake Lines
CS-FCASTERSHIM-2.5 2� Caster Shims
CS-FBDF-2.5-17 High Clearance Bump Stop Drops, Front
CS-FATB-17 Track Bar

�

USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.

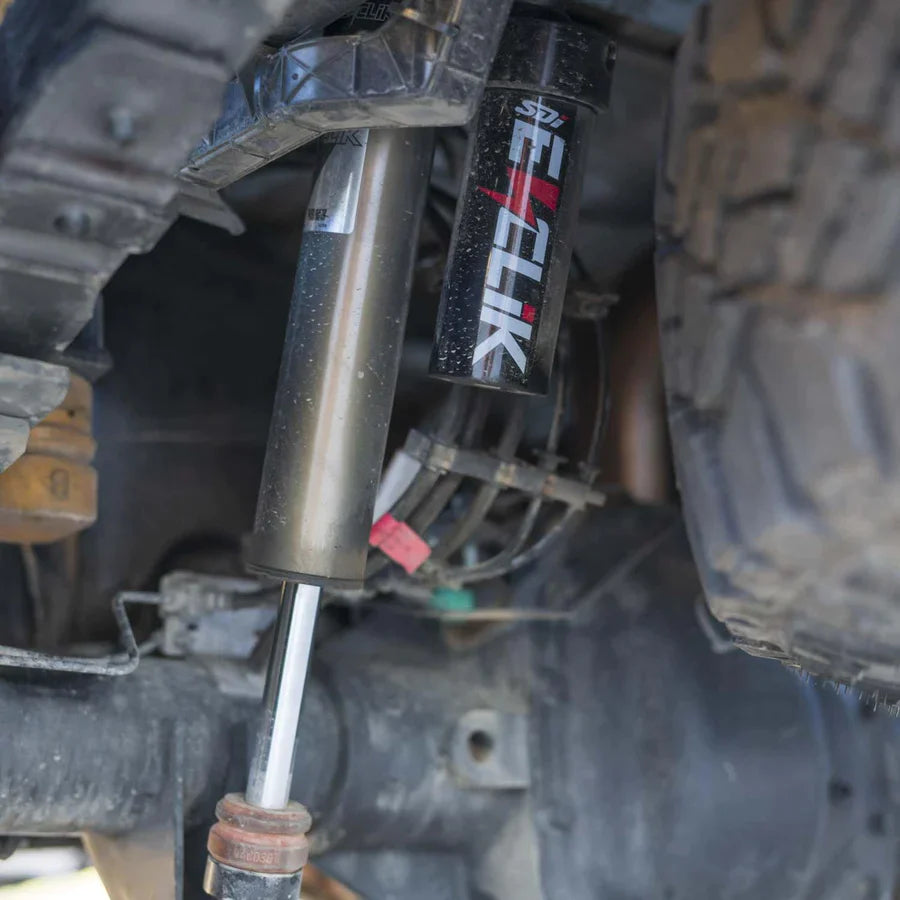

DYNAMIC ELECTRONIC DAMPING // Unlike a traditional shock that uses a static shim stack or an adjustment knob to restrict oil flow, the Carli E-venture system uses an advanced algorithm and on board electronic system to actively adjust shock tuning hundreds of times per second in response to terrain. There has never been a system this smooth for the HD truck market, and it truly needs to be felt to be believed!

�

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck�s ride. To keep the factory ride, select the end link option.

�

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.

�

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37�s on a wider range of wheels.
