Carli Suspension

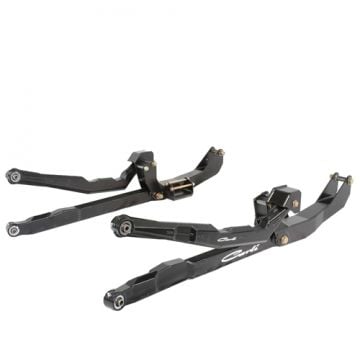

Carli 3" Long Arm System 03-13 Dodge Ram 2500/3500

Regular price $3,375.00 USD
Regular price Sale price $3,375.00 USD
Sale Sold out
Shipping calculated at checkout.

2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

For those looking to get the MOST out of the "least" you've found the last piece to the puzzle. That's right, if you want to gain the absolute most wheel travel with the least amount of lift height to get the most usable suspension performance, then this long arm system needs to be part of the equation.

Designed from the ground up for maximum front wheel travel and unmatched strength, this arm system delivers next level performance boasting upper and lower arms that exceed the factory control arm length by over 50%. Pair this with engineered tire clearance, 1/4" construction, full length internal gussets, bolt on installation and engineered clearance for the factory body mounts and only one conclusion can be drawn; we're offering the strongest, most refined long arm system available.

The ends are fully serviceable joints resulting in zero-bind articulation and nearly friction free movement to ensure the best ride possible pairs with years of reliable service.

The Ram Long-Arms can be run with existing Carli Systems equipped with King Shocks (not recommended for any 2.0" shock equipped systems); however, the shocks will feel far more compliant with less bottom-out resistance when compared to pairing them with short arms given the additional leverage on the front suspension from the rearward shifted arm pivots. Existing Pintop 2.5, Performance 2.5 and Unchained 3.5" short-arm customers will be able to send their shocks in to be revalved. These shocks will not, however, take advantage of the extended travel capability of the Long Arm System.

Longer, flatter arms will maintain a more linear travel stroke and better 37" tire clearance from the cab-corner as there will be no significant rear axle swing as the suspension unloads. It is recommended to run a wheel that is no more than 9" wide with 5.25" Backspace for 37"x12.5" tires which requires slight trimming.

For more extreme tire selections, 4.5-4.75" Backspace will require heavy trimming of the factory bumper and fender. It is recommended to purchase front, fiberglass flared fenders and an aftermarket bumper with more tire clearance for more coverage with a 4.5-4.75" Backspace for 37"x13.5" tire.

IMPORTANT SHIPPING NOTICE: Due to the size and weight of this item, this item is shipped via freight and does not qualify for free shipping.

To experience the extended travel capability of the Long-Arm System, it is recommended to run the following Carli Products:
12" Travel 2.5" Kings or 11.25" Travel 3.5" Kings (Long-Arm Specific Valving)
6.25" Tall, Slide-Over Carli Fabricated Tower
Extended Stainless Brake Lines
Carli Coil Springs
Short Front Bump-Stop Drop
