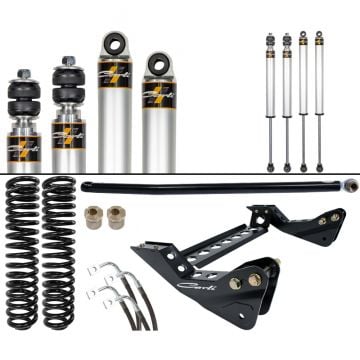

Carli 4.5" Commuter 2.0 Suspension System 11-16 Ford 6.7L Powerstroke

The Commuter 2.0 Suspension System from Carli is about leveling your truck the RIGHT way. It's designed for people seeking a little bit of off-roading while still maintaining good on-road driving. Utilizing Carli SPEC 2.0? diameter shocks tuned for off road use as well as all-around comfort and ride quality while driving in town, on the highway, towing, or hauling. Carli SPEC 2.0 boasts an aluminum body, hardened steel shaft, and full rebuild-ability. The shocks contain premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. Your truck will sit 4.5? higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. To accommodate the additional height and travel, the kit contains radius arm drop brackets, improved brake lines, an adjustable track bar, and caster adjusters to improve on the stock handling.

REAR LEAF SPRING OPTIONS
This system is designed to be paired with a rear leaf spring upgrade to achieve the proper stance.
(after selecting an option, you can view an image of it by clicking through the images above)

Add-a-Pack
Replaces the stiff overload leaf with a pack of 6 progressive leafs for a smoother ride
Maintains original load carrying capacity
Provides 2" of lift
Full Progressive Leaf Spring Kit
Replaces stock 5 leaf design with a 12 leaf progressive design for a smoother ride
Only a slight reduction from a standard 3/4-ton load capacity
Rear will be 1" higher than front when paired with the 4.5? front suspension system

ADDITIONAL UPGRAGES:

Sway Bar Drop Brackets
Required in order to correct the sway bar geometry on 4.5" lifts
Direct Bolt-in
Unhindered Articulation
Carrier Bearing Drop
Required if your truck has a 2-piece driveshaft
Prevents take-off shudder/driveline vibration
Upgraded Radius Arms
Replaces flimsy stock arms with heavy duty design
Caster adjustment from 0.5? to 2.5?
Low Mount Steering Stabilizer
Adjustable pressure and custom valving for larger tires
Includes differential guard and clamp
High Mount Steering Stabilizer
Higher pressure to handle larger tires
Designed for leveled and lifted trucks
Will NOT work with dropped pitman arm
Upgraded Rear Leaf Spring Shackles
Large free-floating bushings
Far better ride than factory shackles

IMPORTANT NOTES:

Wheels: Carli recommends a 17"-18" wheel, no more than 9" wide with 5" of backspacing
Tires: 37", E-rated tire is recommended. Tire pressure 45psi front, 40psi rear
Configuration: Carli 4.5" leveling systems are designed and tested on vehicles with 17"-18" wheels with 37", E-rated tires. Running stock wheels and tires or a larger wheel diameter will result in a stiffer ride.
Add-a-Pack: Super Duties equipped with a 2? block from the factory will require the factory 3-5/8? block to achieve a leveled stance (Part numbers 7C3Z-5598-HB, and 7C3Z-5598-JB). Fits 3.5? axle tube.
Full Rear Leaf Spring Kits: Full leaf spring kits require NO BLOCKS to achieve a proper stance.
