Carli Suspension

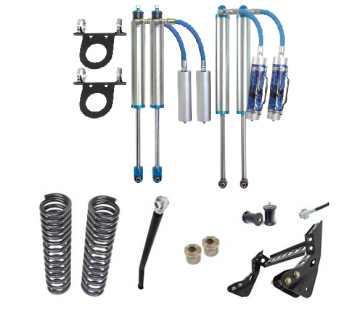

Carli 4.5" King Pintop 2.5 Suspension System 11-16 Ford 6.7L Powerstroke

Regular price $5,020.00 USD
Regular price Sale price $5,020.00 USD
Sale Sold out
Shipping calculated at checkout.

This system was developed for outstanding on-road and highway performance while offering King Off Road Racing shocks with custom pistons and valve profile. Off road performance takes a huge step up, while maintaining Carli signature street ride. Your truck will sit higher, level, have more wheel travel, plush ride quality and OEM towing and weight carrying capacity.

LEAF SPRING OPTIONS:
Add-A-Pack:
Built in the U.S.A. By Deaver Leaf Spring
Smooth progressive design
Supplied with U-bolts and hardware
Provides 2.0" of lift
The O.E.M. load capacity is still maintained while improved ride is achieved
Truck with 2" block will require new blocks to achieve level stance, see notes below
Full Progressive Spring Pack:
Block eliminating, Full Progressive Spring Pack
Includes new U-Bolts and Rear Bump Stop Drops
Provides a 1/2", rear high stance on Matching 4.5" Suspension Systems
37" Tire Fitment
The Backcountry Kit on steroids, take the description for the Backcountry and throw an exponent on it. This system is Carli's most popular, all around suspension system. For quite a while, this system dominated. While the Coilover and Coilover Bypass Systems existed, Carli themselves even continued to run the Pintop 2.5" and 4.5" lift systems on their personal trucks as there wasn't much reason to upgrade a rig that wasn't a dedicated off-road truck. The on road ride is terrific, sharp edges are rounded and light to medium duty offroad escapades become completely controlled and uneventful. Most Carli videos were filmed with the Pintop kit showcasing the extremes of its capability.

The Pintop is a Jack-of-all-trades system from which every Super Duty owner would benefit. Raising the Super Duty Platform then adding the 2.5" diameter shocks (55% more piston surface area than a 2.0" shock) will support the argument that these trucks should come equipped with 2.5" shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems; however, doesn't compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain a best seller for years to come.

The Pintop system boasts Carli specific, blueprinted, King 2.5" shocks on all four corners. In an effort to provide you with the best product, Carli designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; the shocks are then tuned around the custom pistons based on the only thing that matters, seat-of-the-pants feel. Then, ALL King shocks are finished off with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King's standard shafts, there is no coating to wear off, weather can't hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn't damaged as they're not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55? F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that's replaceable.

The truck will sit 4.5" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Drop Brackets reset the sway bar engagement point. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, you'll receive Caster Shims to tighten the steering.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a "light" three-quarter ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 3-5/8" block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn't move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of Carli's Long-Travel Airbags. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37" M/T at full compression.

If ordering this kit with an Add-a-Pack, Super Duties equipped with a 2" tall block from the factory will require the factory 3-5/8" tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-HB, 7C3Z-5598-JB

Wheel and Tire: Carli recommends 17"-18" wheels, no more than 9" wide with 5" of backspacing with a 37", E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

IMPORTANT NOTES:
WHEELS: Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5" of Backspacing on 4.5" Lift Systems.
TIRES: 37", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R.
RECOMMENDED CONFIGURATION: Carli 4.5" Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 37", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
ADD-A-PACKS: Super-Duties equipped with a factory 2" Block will require the 3-5/8" Factory F350 Block [7C3Z-5598-HB, 7C3Z-5598-JB] to achieve a level stance.
LEAF SPRINGS: Full Replacement Leaf Spring Option Requires NO BLOCKS to achieve level Stance.
DRIVELINE: If you have a 2 piece rear drive shaft, you will need to add the Carli Carrier Bearing Drop Kit separately.
