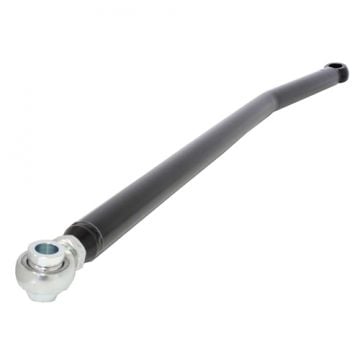

Carli Adjustable Track Bar 05-16 Ford F-250/F-350 SuperDuty 4x4
Couldn't load pickup availability
Carli designed their Adjustable Track Bar with a machined tapered rod end with a custom angle offset to increase ball joint life. This design puts less stress on the ball joint at full droop and keeps the ball joint pin vertical at ride height, prolonging the life of wear items. A big 7/8" FK bearing heim joint is used on the frame side and it comes with custom machined misalignment spacers. Constructed out of heavy wall chromoly tube.
With a 7/8 chromoly bearing on the axle side, and a Delrin style bushing on the frame side, you will feel much tighter and controlled front end. Each bar is constructed of 11/2 .25 wall chromoly to ensure maximum strength. The pan rod bar will also allow you to center the axle after installing a 2.5" - 4.5" lift suspension system.
SPECIFICATIONS:
Constructed from 1.50 x .250 Chromoly Tube
7/8" FK Bearing Heim with 7/8" Shaft
Custom Machined Misalignment Spacers
Custom Offset Machined Tapered Rod End
IMPORTANT NOTE:
This track bar will only fit SuperDuties with 2.5"-4.5" of Suspension Lift without the use of a track bar drop bracket.
