Carli Suspension

Carli Commuter 2.0 Suspension System 09-18 Ram 1500 3.0L EcoDiesel / Hemi

Regular price $2,260.00 USD
Regular price Sale price $2,260.00 USD
Sale Sold out
Shipping calculated at checkout.

2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

That's right, you heard it correctly, Carli Suspension offers a kit for a half ton! And they will openly admit that the driving force behind this was completely derived from the fact that there's a diesel under the hood, so they threw their typical straight axle protocol out the window and went to work designing a system to annihilate the stock setup and the rest of the competition.
In typical Carli fashion, you can fully expect a drastically enhanced suspension performance to include wheel travel. Specifically, the Commuter Series is tailored for those that daily drive, tow, and occasionally take their trucks on some mild off roading excursions. No, this isn't designed for hucking your half ton six feet in the air, but its built specifically for those that use their truck....as a truck. Overall, you will gain a level stance, a better overall ride whether its on smooth highway, a rutted out, pothole ridden side street, or cruising around on light trails, and increased wheel travel.

SUSPENSION SPECIFICATIONS:
2" Front End Height Increase
3/4" Rear End Height Increase
10" Front Wheel Travel
13" Rear Wheel Travel
TIRE FITMENT SPECIFICATIONS:
Fits 33" tire on a wheel no more than 9" wide with 4.75-5" backspace
Fits 35" tire with minimal trimming

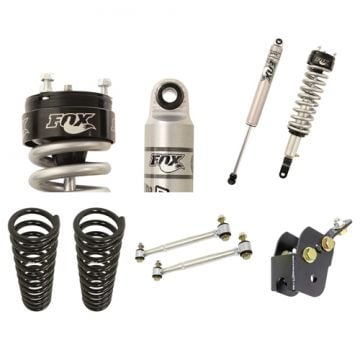

KIT CONTENTS:
Extended Rear Sway Bar End Links
Rear Track Bar Drop Bracket
Rear Multi-Rate Coil Springs
Fox 2.0 IFP Front Coilovers
Fox 2.0 IFP Rear Shocks
REAR COIL SPRINGS:
Custom multi-rate for optimum ride quality
Soft initial rate progresses into a higher spring rate during suspension travel
COILOVERS SHOCKS:
Front Fox 2.0 IFP Coilover with custom Carli tune
Rear Fox 2.0 IFP Shock with aluminum body
Direct-fit bolt-on application
TRACK BAR DROP:
Re-aligns rear track bar to maintain factory geometry
Simple bolt-on application
Eliminates axle-to-body side-shift during suspension travel
EXTENDED REAR SWAY BAR END LINKS:
Ensure rear axle's travel is not limited by sway bar being bound by factory end links
Forged housings
Durable bushings
Stainless crush sleeves
Machined aluminum bodies
Grade 8 hardware
