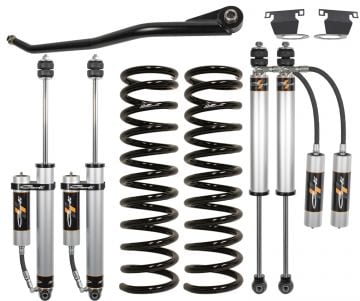

Carli Suspension Backcountry Leveling Kit 19-24 Ram 2500 6.7L Cummins

2019, 2020, 2021, 2022, 2023, 2024

When most people think of a leveling system they think of a simple spacer kit that is installed on top of your factory coil springs to increase the front end ride height. Well, that's not this! In true Carli Suspension form, this is a fully engineered system to increase the ride comfort and suspension performance of your Ram 2500 designed for those that aren't looking for one of Carli's complete suspension systems. And no, Carli didn't just take the coil springs from their other systems and a kit, the coil springs featured in this Leveling Kit were built specifically for this system. This system utilizies the Carli SPEC 2.0 Remote Reservoir shock and can take your street truck to a rig that you won't throwing around in the dirt in comfort.

The Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the Leveling Kit for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You?re no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. The 2.5? lift height doesn?t require the front or rear geometry correction of the Carli 3? Systems.

Utilizing Carli SPEC 2.0? Diameter, Remote Reservoir shocks, Carli has developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The remote reservoir Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8? hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec?d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. Carli backs these with a 1-year , serviced by Carli.

The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren?t looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, on and off-road, this is the perfect kit.

The front axle will be slightly pulled to the Driver?s side following installation of the lift; this will be corrected with the Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of our Torsion Sway Bar. We recommend a 35? tire on a wheel that?s no more than 9? wide with 5.5?-6? Backspace. An 18? diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.

IMPORTANT NOTES:
This system will NOT be upgradeable to any other Carli Suspension Systems. It's designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. Carli recommends slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. Carli did not experience a coil bow in any of the test trucks, but it's possible at the 2.5" lift height without a Radius Arm Drop Bracket.
This system is not intended for use on models with factory rear air ride. While the kit will physically bolt up, due to the shorter rear factory ride height of the air ride equipped Ram 2500's, installation of this kit will result in a nose high stance.
