Diode Dynamics Heavy Duty Dual Output 4-pin Wiring Harness

Regular price $60.00 USD
Regular price Sale price $60.00 USD
Sale Sold out
Shipping calculated at checkout.

What's Included

In the Box:
  • One (1) wiring harness
  • One (1) toggle switch
  • One (1) OEM aux adapter
Quantity:One (1)
Warranty:3 year warranty

Features

  • Powers Diode Dynamics LED pods with backlight functionality.
  • Connects directly to the�battery to power your LED�pods.
  • High capacity 14AWG wiring.
  • Dual Deutsch DT output connectors.
  • 30A�waterproof fuse, and 60A�12V relay�to safeguard the electrical systems in your pods.

Overview

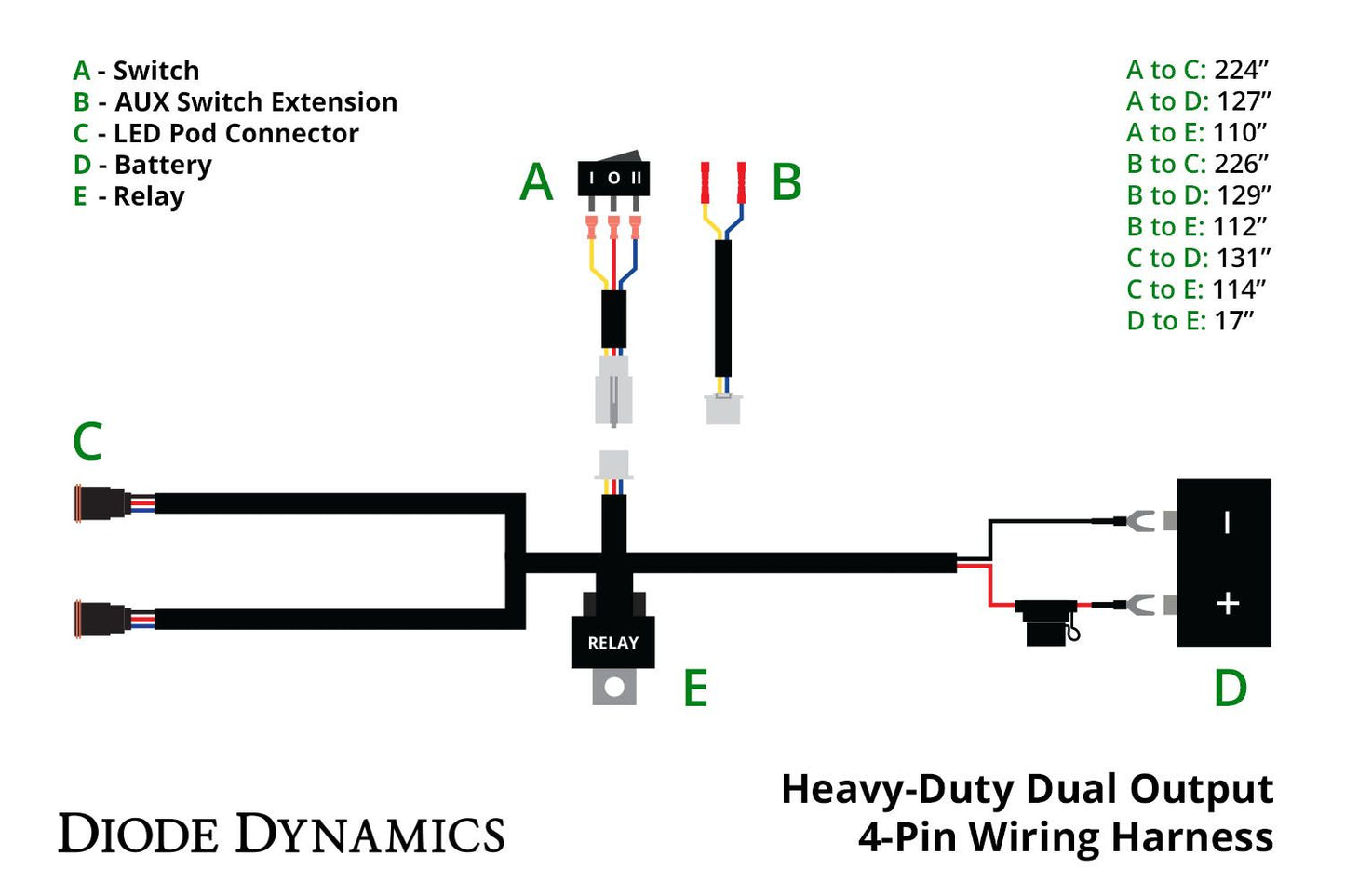

Stage Series.�This harness is�intended to be used with our�Stage Series pods with backlight functionality. This�harness connects directly to your vehicle's battery and�allows you to power your offroad lighting. It�features a three-way switch to toggle�between the�backlight,�off, and the�main beam.�This harness uses high capacity 14AWG wiring and Deutsch DT connectors�for simple plug-and-play installation.

This harness safely powers up to25A of auxiliary lamps. Please refer to the current draw data below.

  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A
  • SS3 Non-Backlit Sport: 2.9A
  • SS3 Non-Backlit Pro: 1.2A
  • SS3 Non-Backlit Max: 3.3A
  • SS3 Backlit Sport: 1.06A
  • SS3 Backlit Pro: 2.87A
  • SS5 Sport: 2.8A
  • SS5 Pro: 6.7A

Control through OEM Aux Switches.This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.

Experience.After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble�and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
