Diode Dynamics

Diode Dynamics LED Ditch Light Kit: 2019-2023 Ram 1500

Regular price $280.00 USD
Regular price Sale price $280.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Power Level/Brightness
Pod Size

Features

  • Bolt-on fitment on 2019, 2020, 2021, 2022, 2023 Ram 1500
  • Allows you to mount two Stage Series LED Pods above the hood.
  • Utilizes existing mounting points for easy installation.
  • Thick-gauge stainless steel construction.
  • Low-profile design.
  • Assembled in USA.

Overview

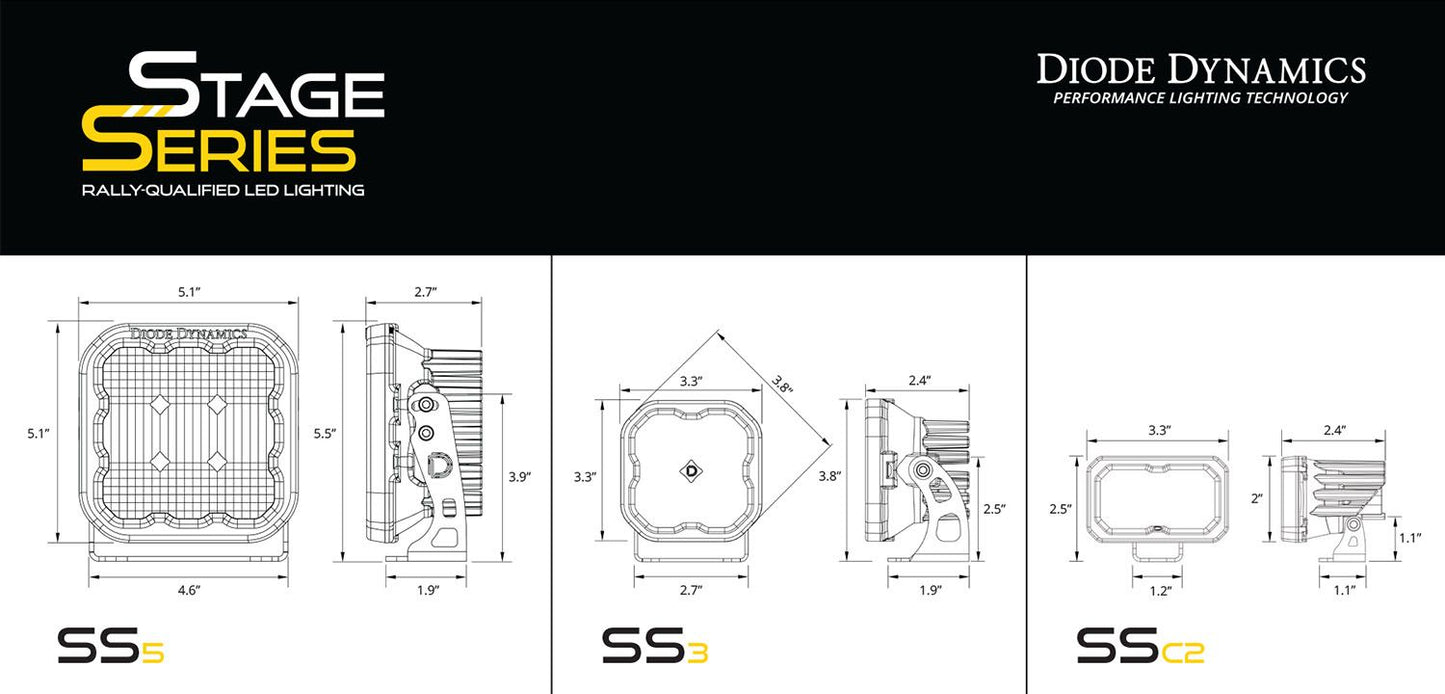

Perfect fitment. The Stage Series Backlit Ditch Light Kit for the Ram allows you to easily mount two SS5, SS3 or SSC2 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.

Built to last. The brackets in this kit are constructed�out of thick-gauge stainless steel. Unlike other�options made out of mild steel, these brackets�are full stainless steel and�won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving.�

Control through OEM Aux Switches. This kit includes an OEM aux switch adapter wire that connects to the harness and allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the toggle switch adapter wire included with the harness to mount a switch.

Focused.Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our LED Pods collect all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 and SSC2�serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series Pod�is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional output. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Combo�combines both the Driving and Flood optics. The SS5 shines light downrange in a full 70x30 degree pattern, the SS3 shines light downrange in a 65x25 degree pattern, and the SSC2 shines light downrange in a 40x20 degree pattern.

Combo optic

For states that require them, we also offer snap-on covers for your Stage Series LED Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way!

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool�white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.�We also offer replacement lenses that allow you�to change the color or optic of your Stage Series LED Pods.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.

Backlight Functionality. Both the SS3 and SSC2 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. The SS5 Pods included with this kit feature a selectable backlight with eight different color options. Selecting your backlight color on the SS5 is easy - simply alternate the power on and off. There�s no complicated programming with a controller! This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble�and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • Two (2) SS5, SS3 or SSC2 Standard LED Pods
  • Two (2) Ditch Light Brackets
  • One (1) Heavy Duty Dual Output 4-pin Wiring Harness
  • Mounting hardware
  • Mounting guide
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE:�Do not use automatic car washes with this kit installed.
