Diode Dynamics SS5 Crosslink LED Lightbar Kit for 2021-2023 Ford F150

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out
Color
Power Level/Brightness

Fits 2021, 2022, 2023

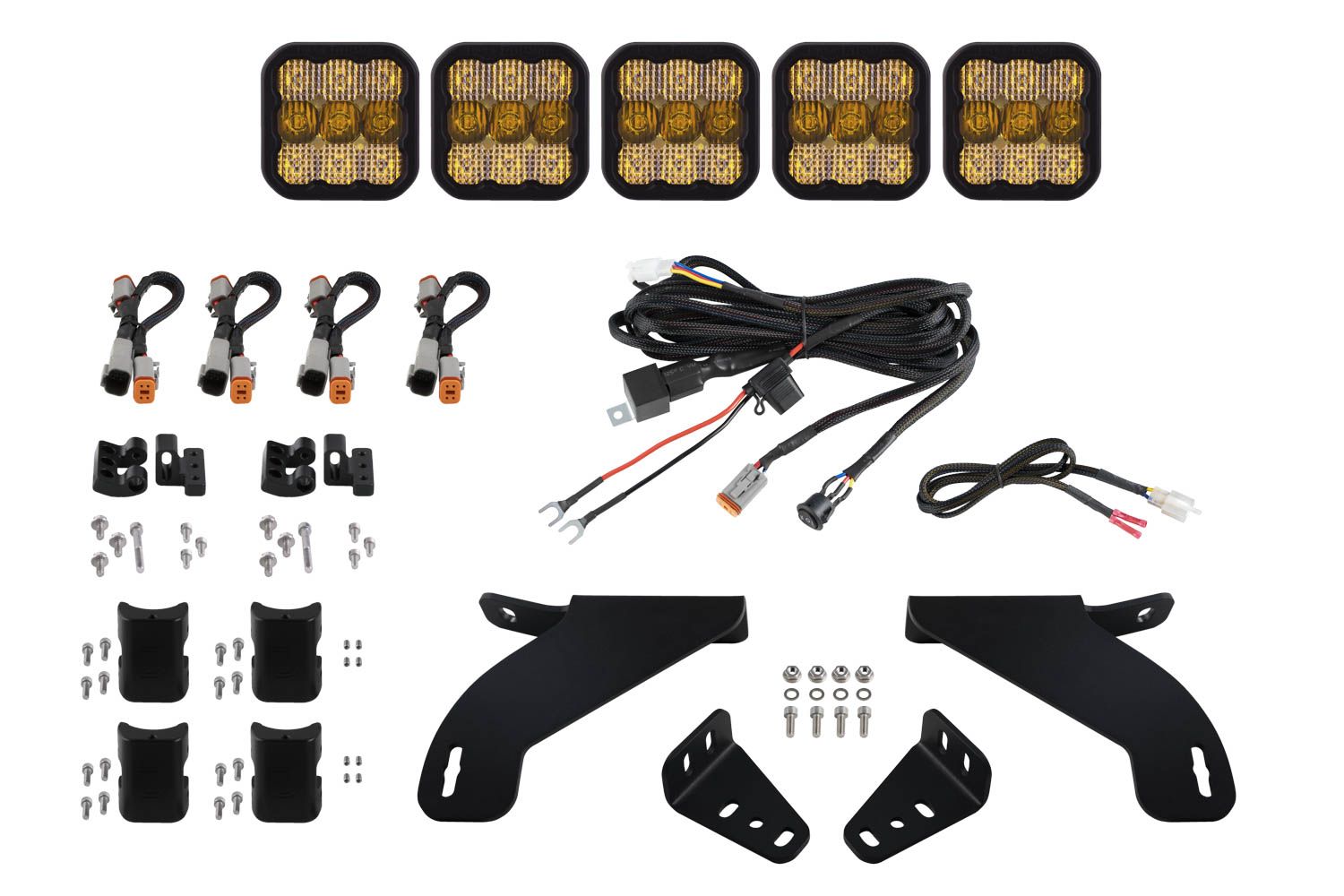

What's Included

In the Box:
  • Two (2) Application-specific heavy-duty steel brackets
  • Five (5) Stage Series 5� LED Pods
  • Four (4) CrossLinks with hardware
  • One (1) CrossLink endmount kit
  • Four (4) CrossLink splitter harnesses or Three (3) Ultra heavy-duty CrossLink splitters & One (1) Ultra heavy-duty terminating splitter
  • One (1) Heavy duty single-output harness or One (1) Ultra heavy-duty single-output harness
  • Installation Guide
Quantity:One (1)
Warranty:8 year warranty

Features

  • Bolt-on fitment on 2021+ Ford F-150
  • Ultra-high intensity, with custom-engineered TIR optics
  • Selectable backlight color, with eight color options
  • Torture-tested, heavy-duty construction
  • Control through factory aux switch bank using the included harness
  • Assembled in USA

Overview

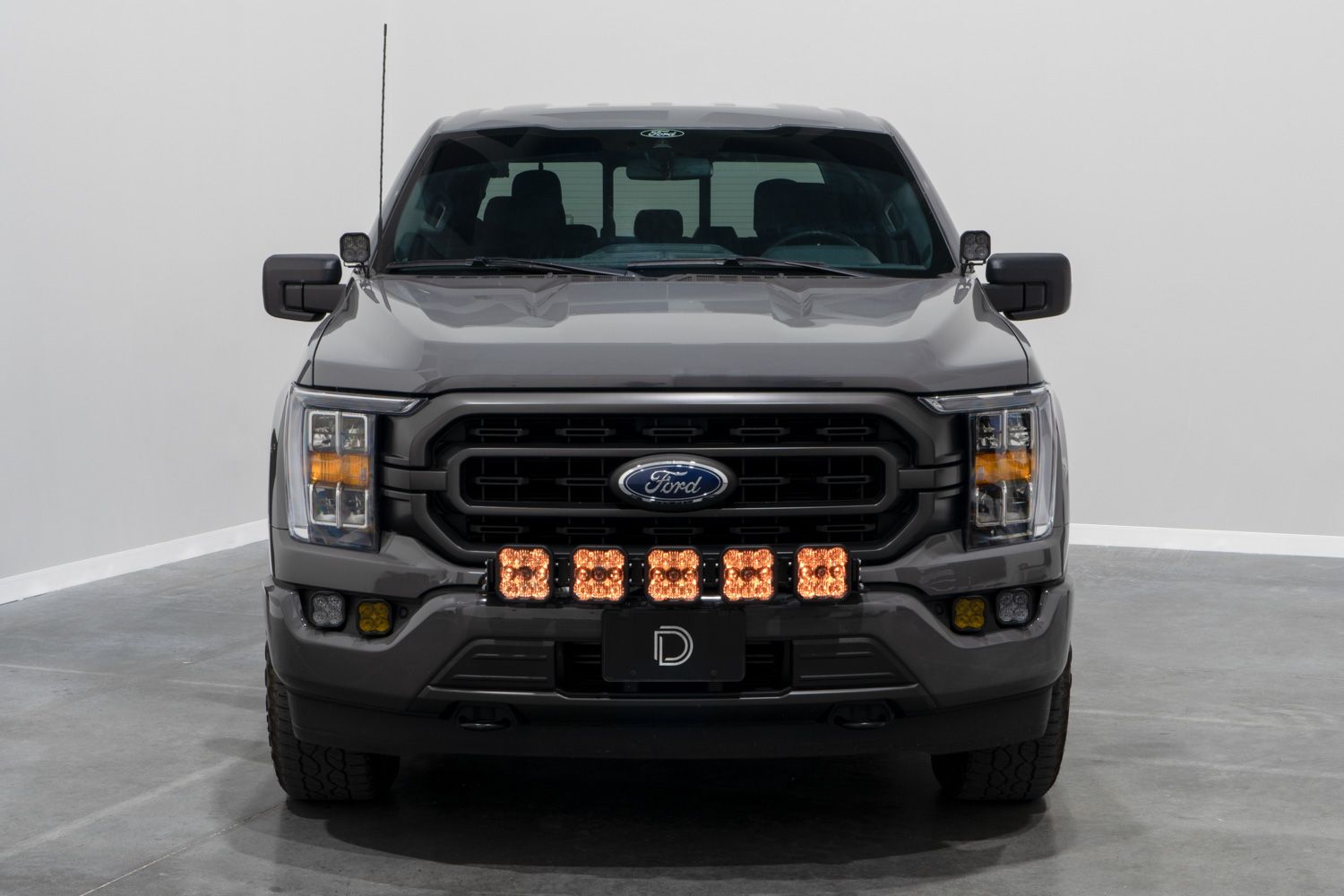

Perfect Fitment.�The�Grille�CrossLink Lightbar Kit for the 2021+ Ford F-150�from Diode Dynamics allows you to mount�five linked�SS5 LED pods�in front of the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points�on the factory grille. No cutting or drilling required!�

Designed for Performance.�Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

Selectable Backlight.�The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you�re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There�s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods.�NOTE:�Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.

CrossLink.�Our patent-pending CrossLink technology allows you to link the five SS5s included in this kit together to create a single lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable. This kit was designed for a curved configuration. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.�

Control through OEM Aux Switches.�Both kits include an OEM aux switch adapter wire that connects to the harness and allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the toggle switch adapter wire included with the harness to mount a switch.�

Functional Output.�Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

Combopattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

White or Yellow.�This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.�

Interchangeable Lens.�Need a different beam pattern or color? You can swap it yourself! We offer�replacement lenses�that allow you to change the color or optic of your Stage Series SS5 Pods.

Sport or Pro.�This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.

Snap-on covers.�For states that require them, we also offer�snap-on covers�for your SS5 Pod. These covers are available in a variety of colors and keep your SS5 Pod clean and protected from dirt, dust, or whatever else the road throws your way!�

Proven Reliability.�Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
