FOX

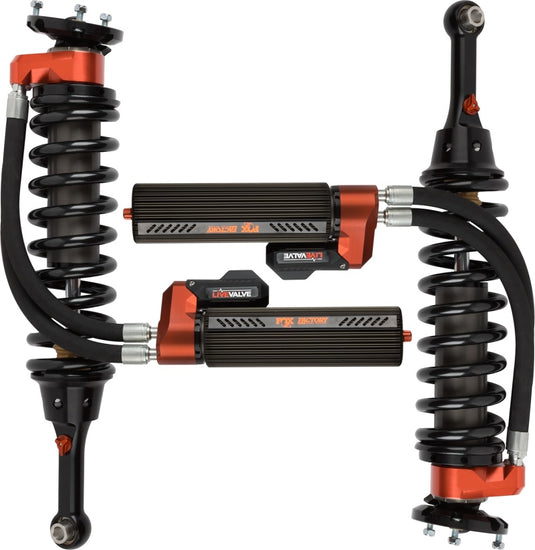

Fox | 2019-2020 Ford Raptor 3.0 Factory Race Series Live Valve Internal Bypass Coil-Over Front Shock Pair With Adjuster | 0-2 Inch Lift

$4,199.95 USD
$4,199.95 USD
Sale Sold out
Shipping calculated at checkout.

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert., , NEW Live Valve semi active technology equipped, plug and play integration to factory electronics, NEW Rebound and compression adjustable via Quick Switch Technology (QS3), NEW Rotatable hose fittings for easy installation, FOX patented, position-sensitive Internal Bypass damping technology



FEATURES Performance Tuned Specifically For Raptor; Finned External Reservoir System Dissipates Heat Fast; Quick Switch Compression And Rebound Adjusters; Live Valve Terrain Adaptive Technology; Black Anodized CNC Machined Aluminum Components
SERIES Factory Race
TRAVEL 7.89
FRONT LIFT HEIGHT 0-2
BODY 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
BODY PLATING Hard-anodized for a durable finish
COMPONENTS Anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated 17-4 H900 stainless steel
PISTON Hard anodized 6061-T6 billet aluminum high flow race piston
VALVING Application-specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
BEARINGS PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
EXTENDED LENGTH 28.49
COMPRESSED LENGTH 20.6
TOP MOUNT OEM
BOTTOM MOUNT Eyelet
FITMENT NOTES Reservoir Mounting Hardware Included
